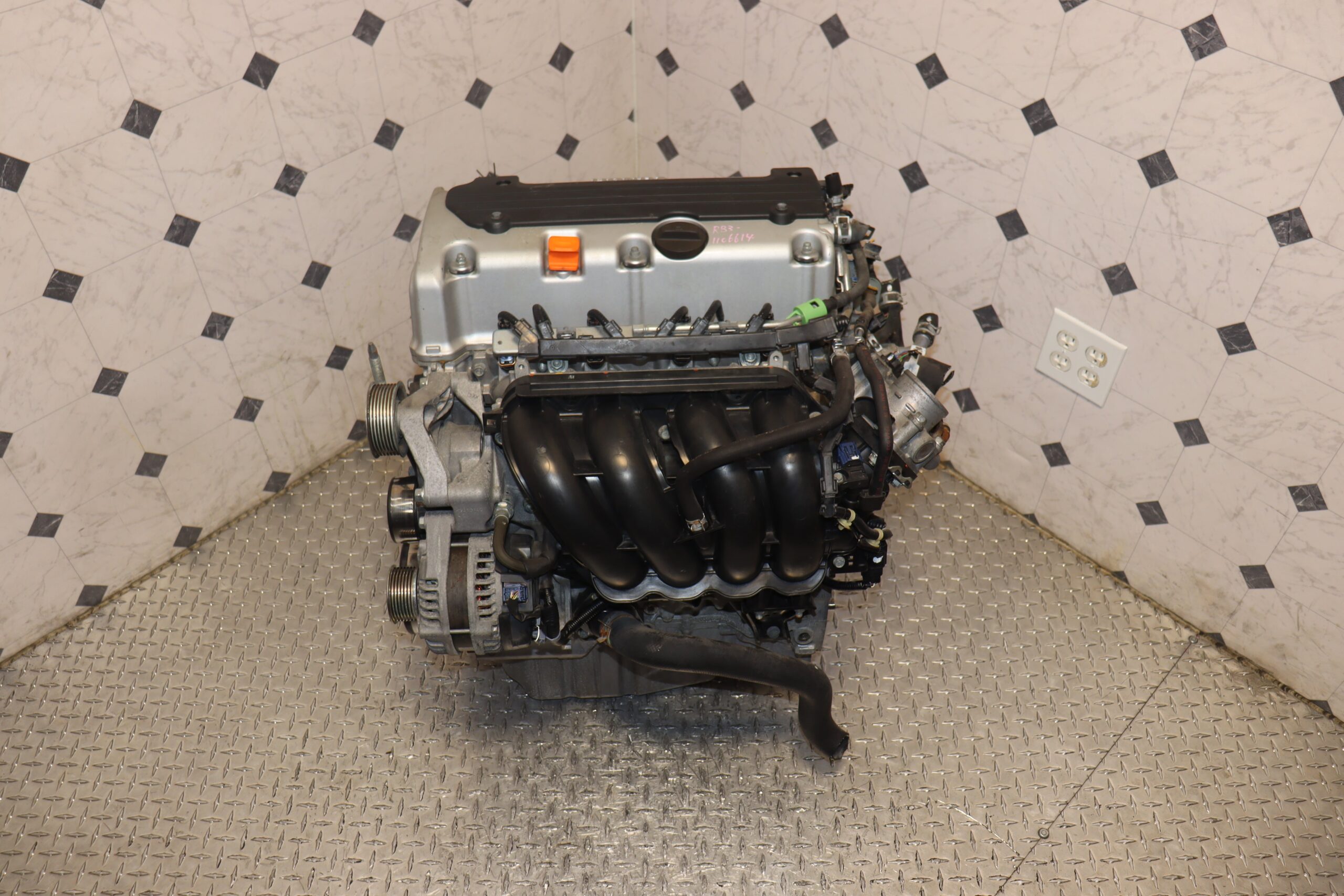

2011–2014 Honda CRV K24A JDM Engine | 2.4L DOHC i-VTEC Motor K24Z7





Product Information



2011–2014 Honda CRV K24A JDM Engine | 2.4L DOHC i-VTEC Motor K24Z7



Vehicle Specifications



• Engine Code: K24A (RB3 / 3rd Gen JDM Motor)





• Displacement: 2.4 Liter (2,354cc)





• Configuration: Inline 4-Cylinder DOHC 16-Valve





• Valvetrain: i-VTEC (Intelligent Variable Valve Timing)







Vehicle Fitments



• 2011–2014 Honda CR-V (RM Chassis, 4th Generation)







Included Parts



• Complete JDM Engine Long Block (Block and Cylinder Head)





• Intake Manifold & Throttle Body





• Fuel Rails & Injectors





• Alternator, AC Compressor, & Power Steering Pump (Bonus items)





• Coil Packs, Spark Plugs & Engine Sensors







Installation & Notes



• USDM Swap: To ensure 100% plug-and-play ECU compatibility, you must transfer your original USDM wiring harness and all sensors to this JDM long block.





• Oil Pickup Note: Some RB3 variants require the oil pickup to be shaved or swapped with your USDM unit when you’re transferring your original oil pan.





• Maintenance: We strongly recommend replacing the timing chain tensioner, water pump, and spark plugs before installation.





• Oil: Use 0W-20 or 5W-20 Full Synthetic Motor Oil.
