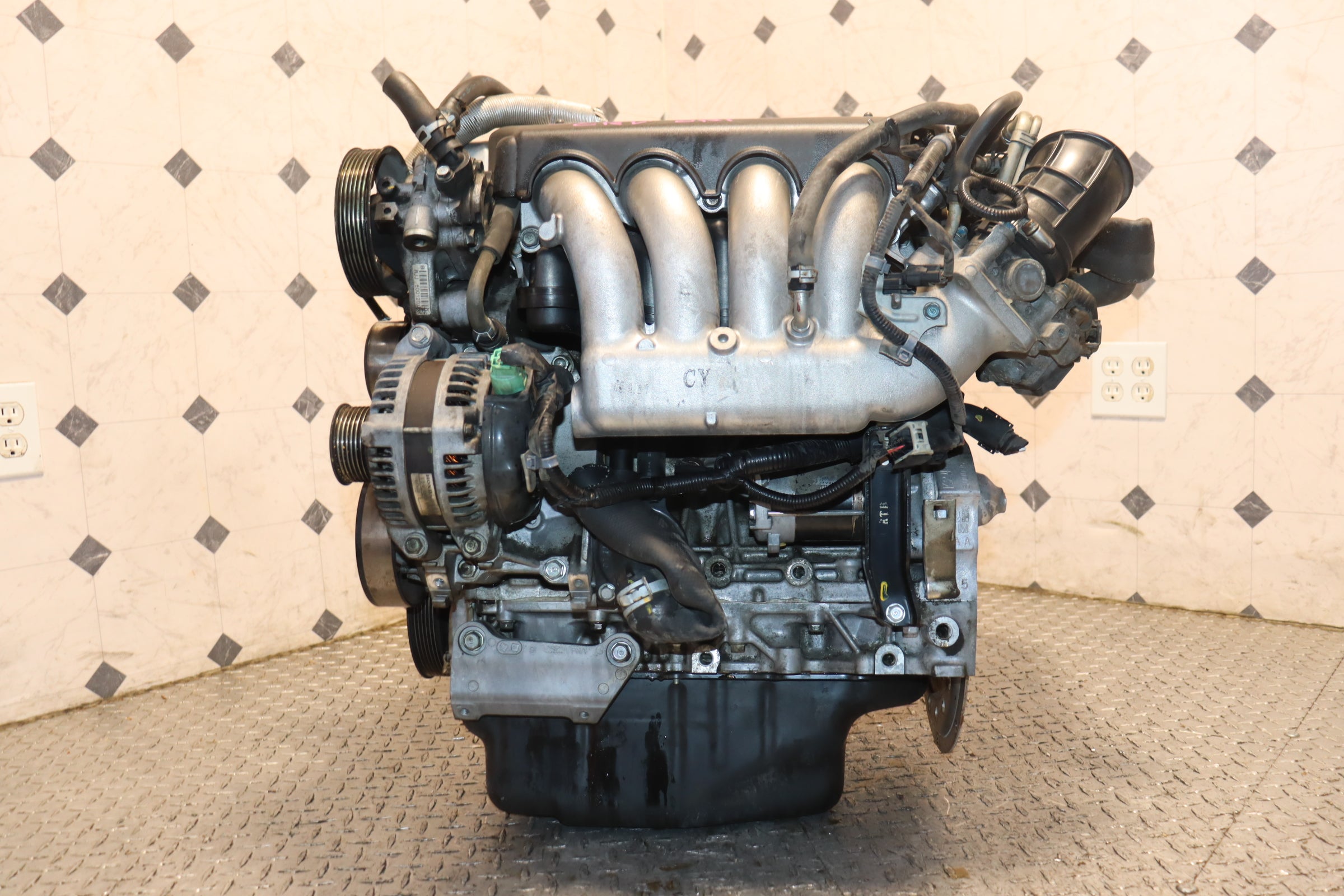

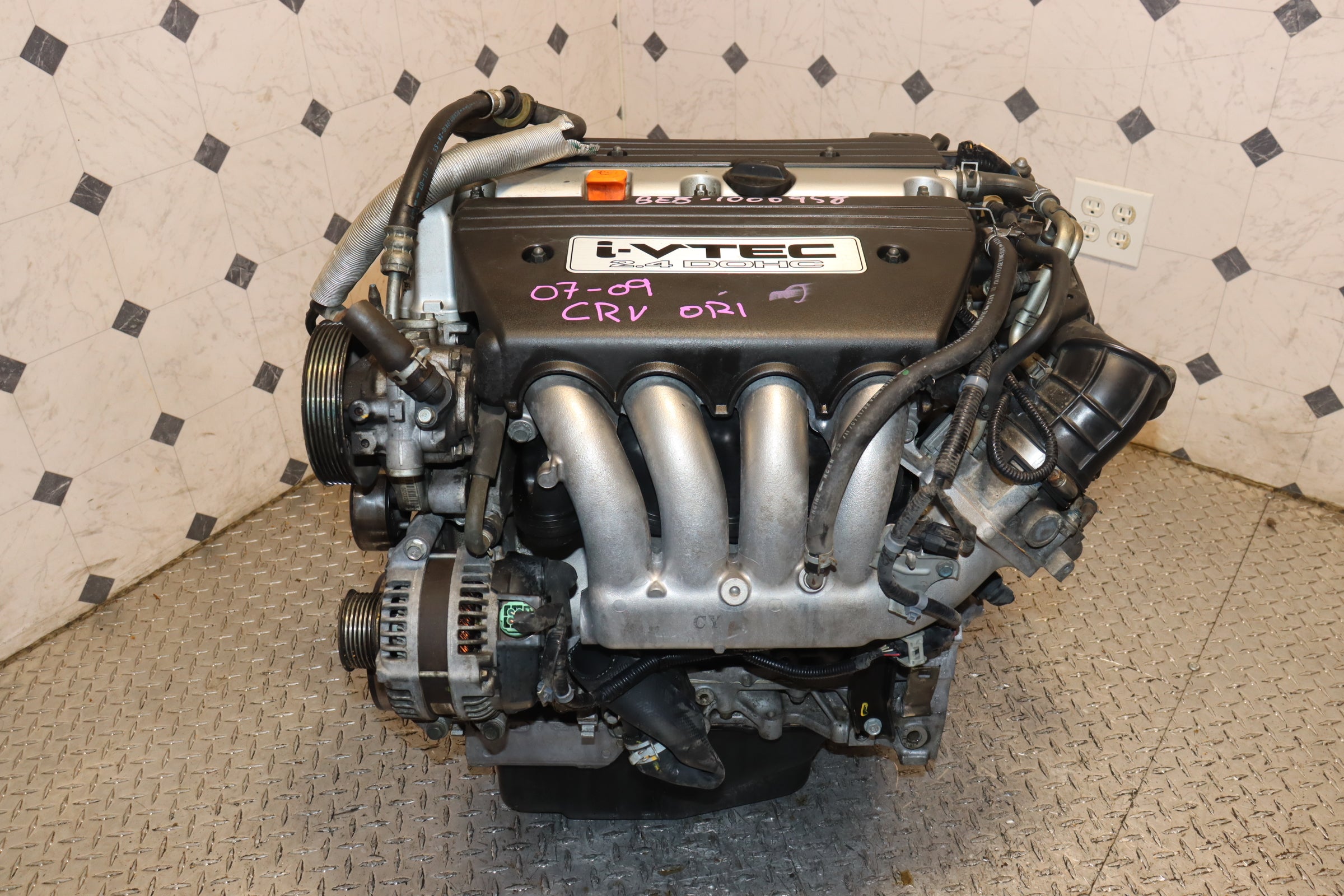

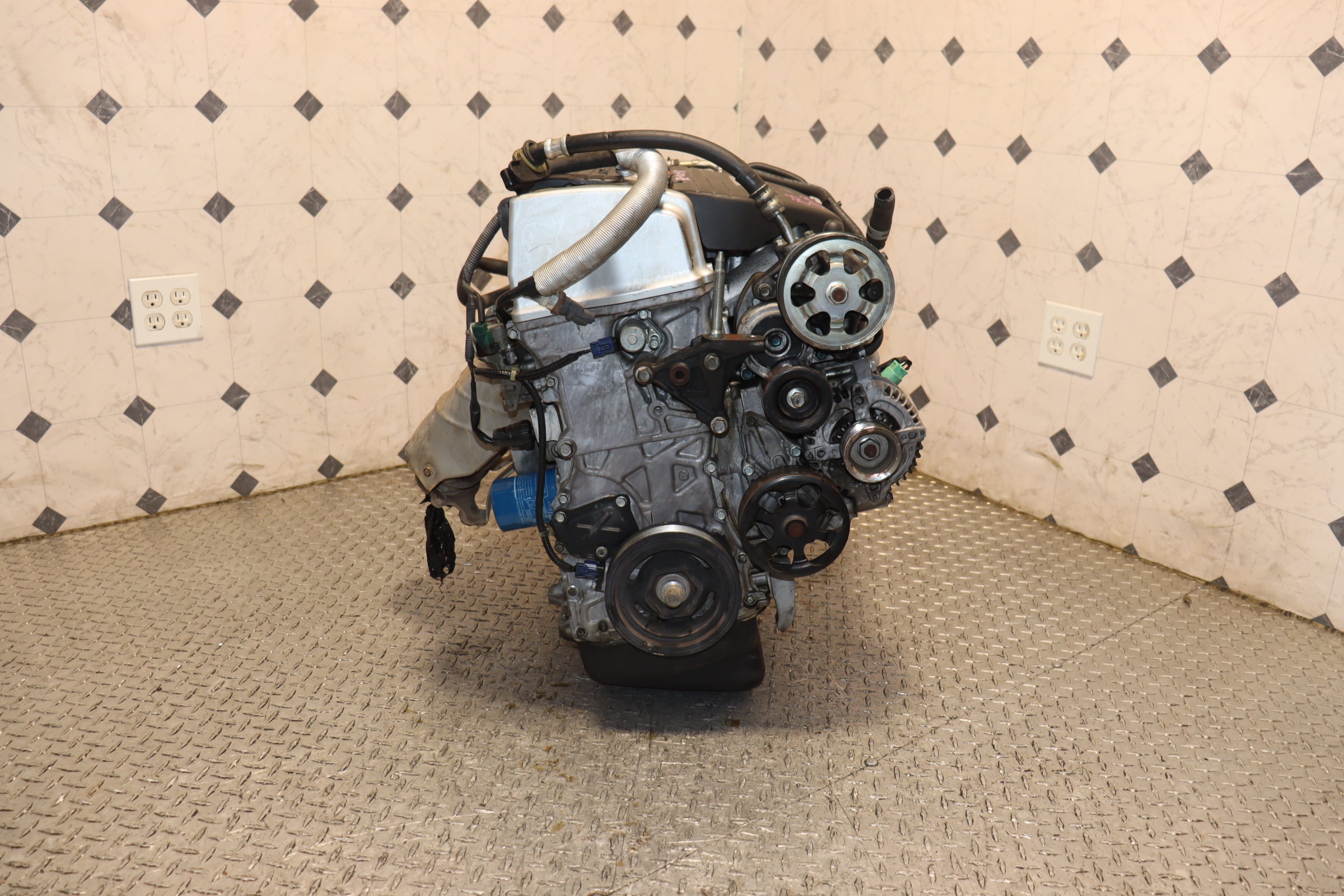

2007-2009 Honda CR-V K24A JDM Engine | 2.4L DOHC i-VTEC K24Z1 Motor





Product Information



2007-2009 Honda CR-V K24A JDM Engine | 2.4L DOHC i-VTEC K24Z1 Motor



Vehicle Specifications



• Engine Code: K24A (JDM equivalent to K24Z1)





• Displacement: 2.4 Liter (2,354cc)





• Configuration: Inline 4-Cylinder DOHC 16-Valve





• Valvetrain: i-VTEC (Intake side)







Vehicle Fitments



• 2007-2009 Honda CR-V (RE1/RE2/RE4 Chassis)





• Note: This engine is a direct long block replacement for the USDM K24Z1.







Included Parts



• Complete JDM Engine Long Block (Cylinder Head & Block Assembly)





• Intake Manifold & Throttle Body (May require USDM swap)





• Alternator, AC Compressor, & Power Steering Pump (Bonus items)





• Coil Packs & Engine Sensors







Installation & Swap Notes



• Component Transfer: To ensure full compatibility, you must transfer your original USDM intake manifold, timing chain cover (with mount), and primary/secondary oil pans.





• Crank Sensor: Use your original USDM crank sensor and trigger wheel to avoid ECU synchronization issues.





• Maintenance: We strongly recommend replacing the water pump, thermostat, and front/rear main sea

ls prior to installation for long-term reliability.
