Product Information

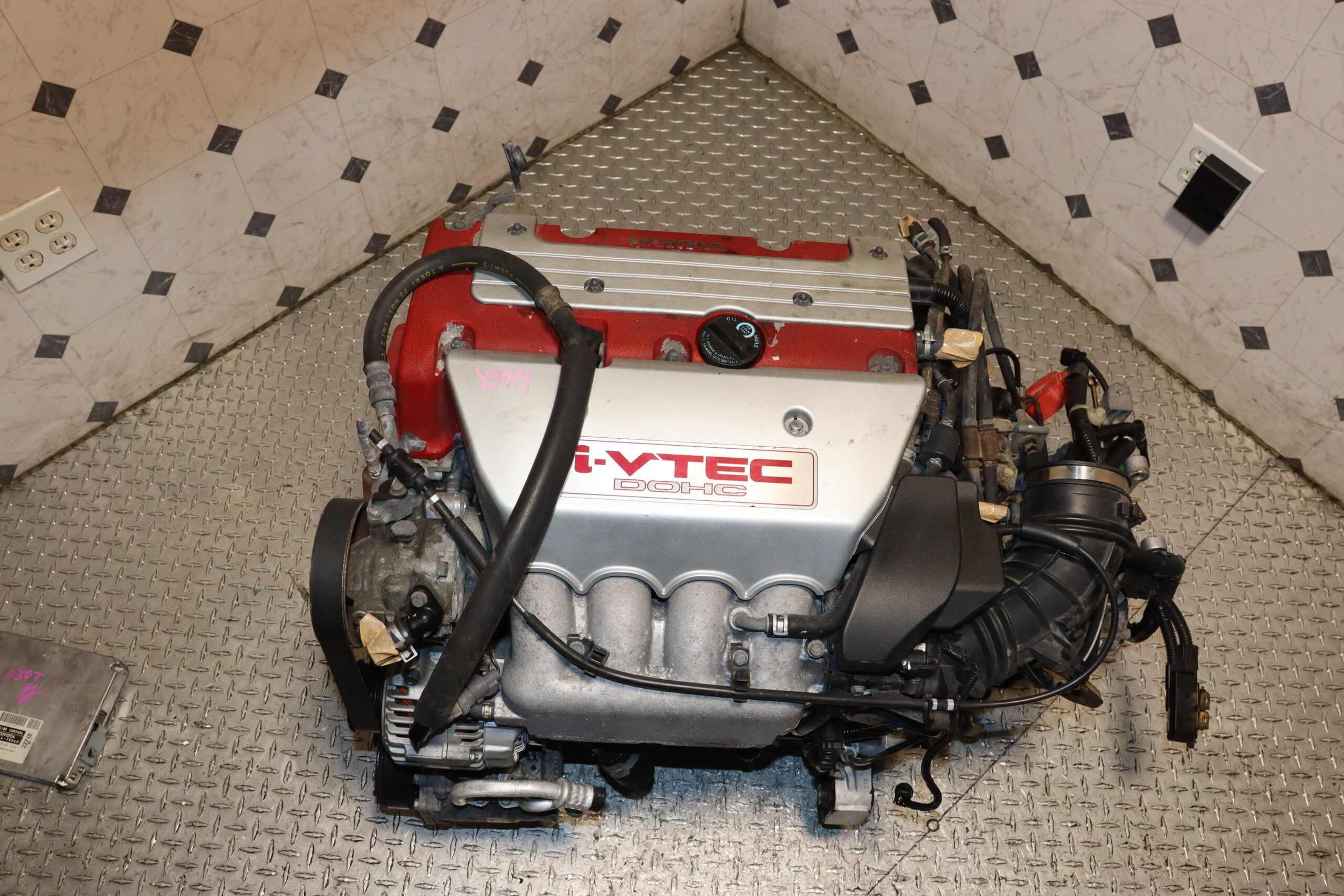

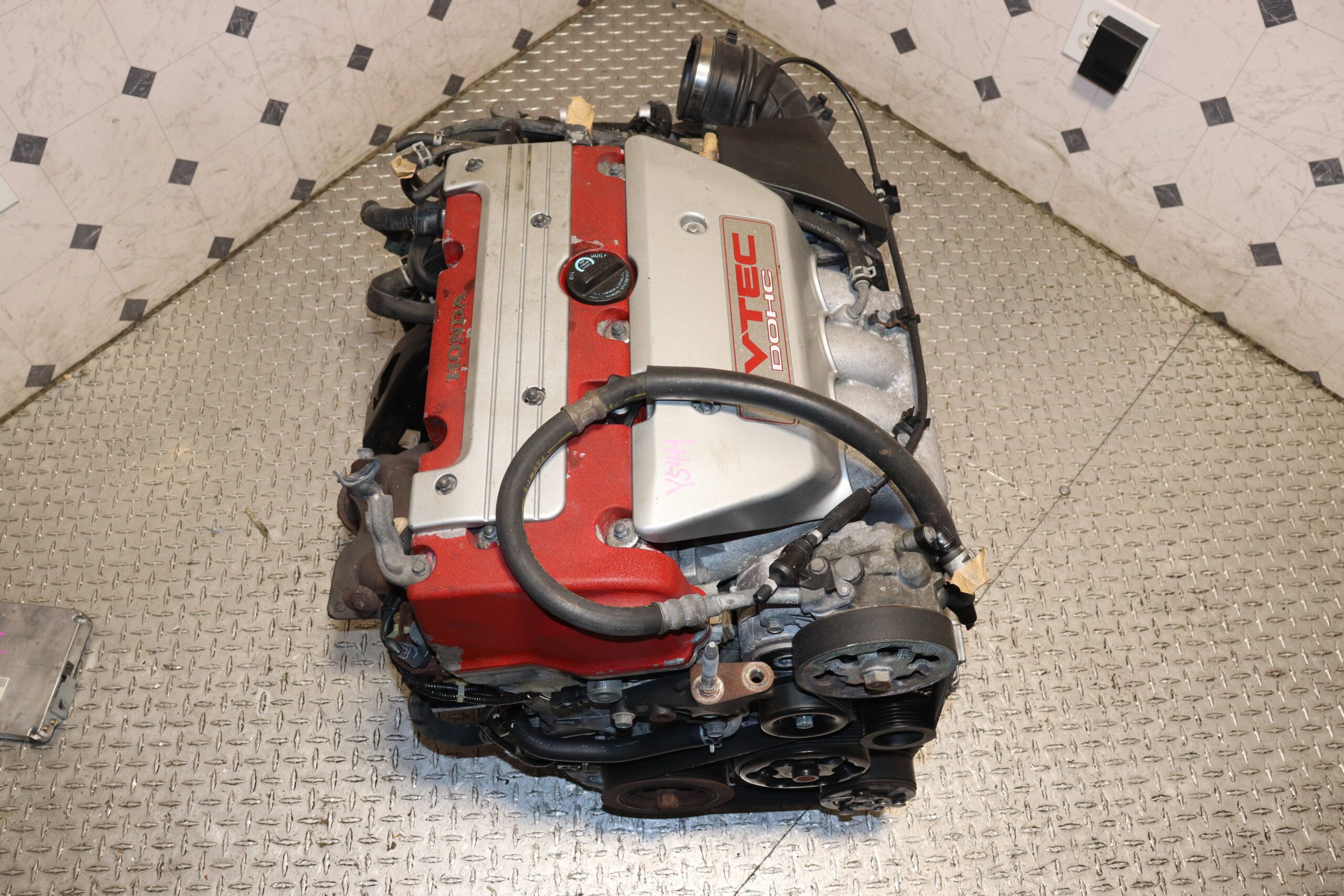

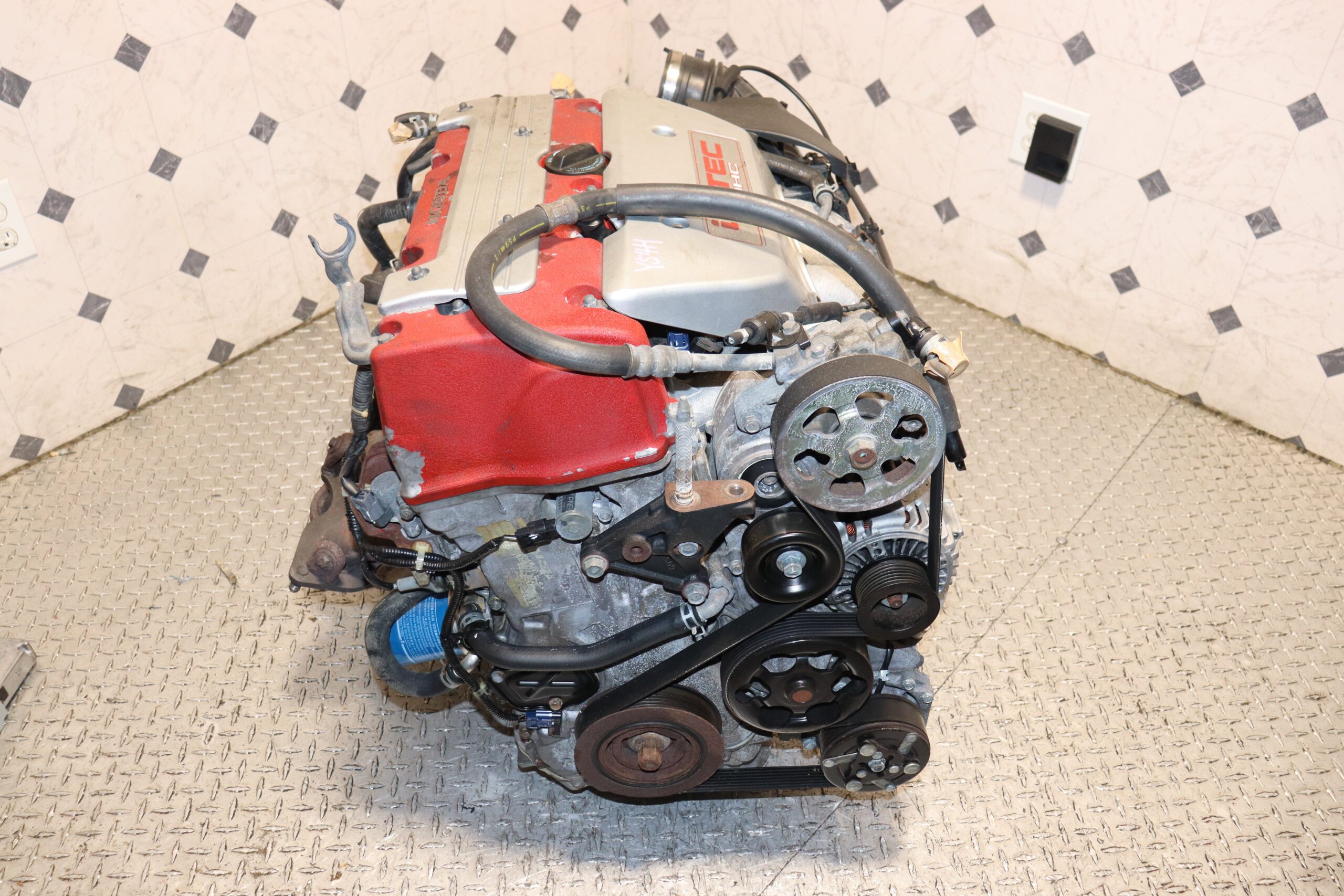

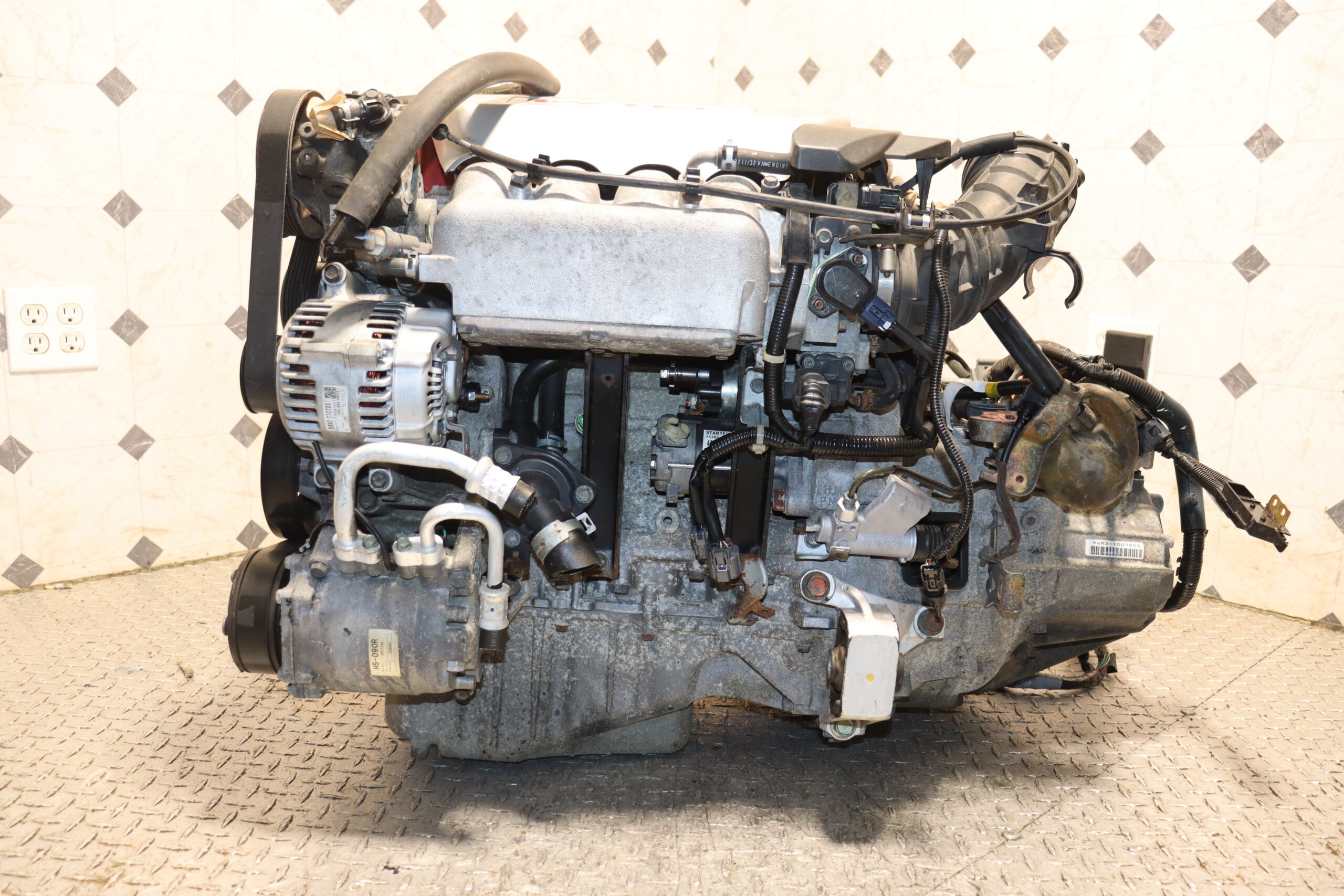

2002-2006 Honda Integra RSX DC5 K20A Type R JDM Engine With 6 Speed Manual LSD Transmission
Feature Details
Engine Code K20A (High Output “Red Top”)
Horsepower 220 HP @ 8,000 RPM (Factory Spec)
Transmission 6-Speed Manual (Close Ratio)
Differential Factory Helical LSD (Limited Slip)
Origin Japanese Domestic Market (JDM)
Estimated Mileage 40,000 – 60,000 Miles
Category Details
Included Engine Parts Block, Red Top Cylinder Head, Intake Manifold, Throttle Body, Alternator, Fuel Rail, and Injectors.
Included Transmission 6-Speed Manual LSD Gearbox and Torque-Rated Clutch/Flywheel (as-is).
Required for Swap You must use a K-Series compatible ECU (Hondata K-Pro recommended) and matching engine harness for US-spec conversions.
Maintenance Required: Fresh 5W-30 Synthetic Oil, Honda MTF (Manual Transmission Fluid), and a new Honda OEM Oil Filter.
Expert Tip Inspect the dual-mass flywheel and clutch disc before installation; replacing these while the engine is out is highly recommended.
