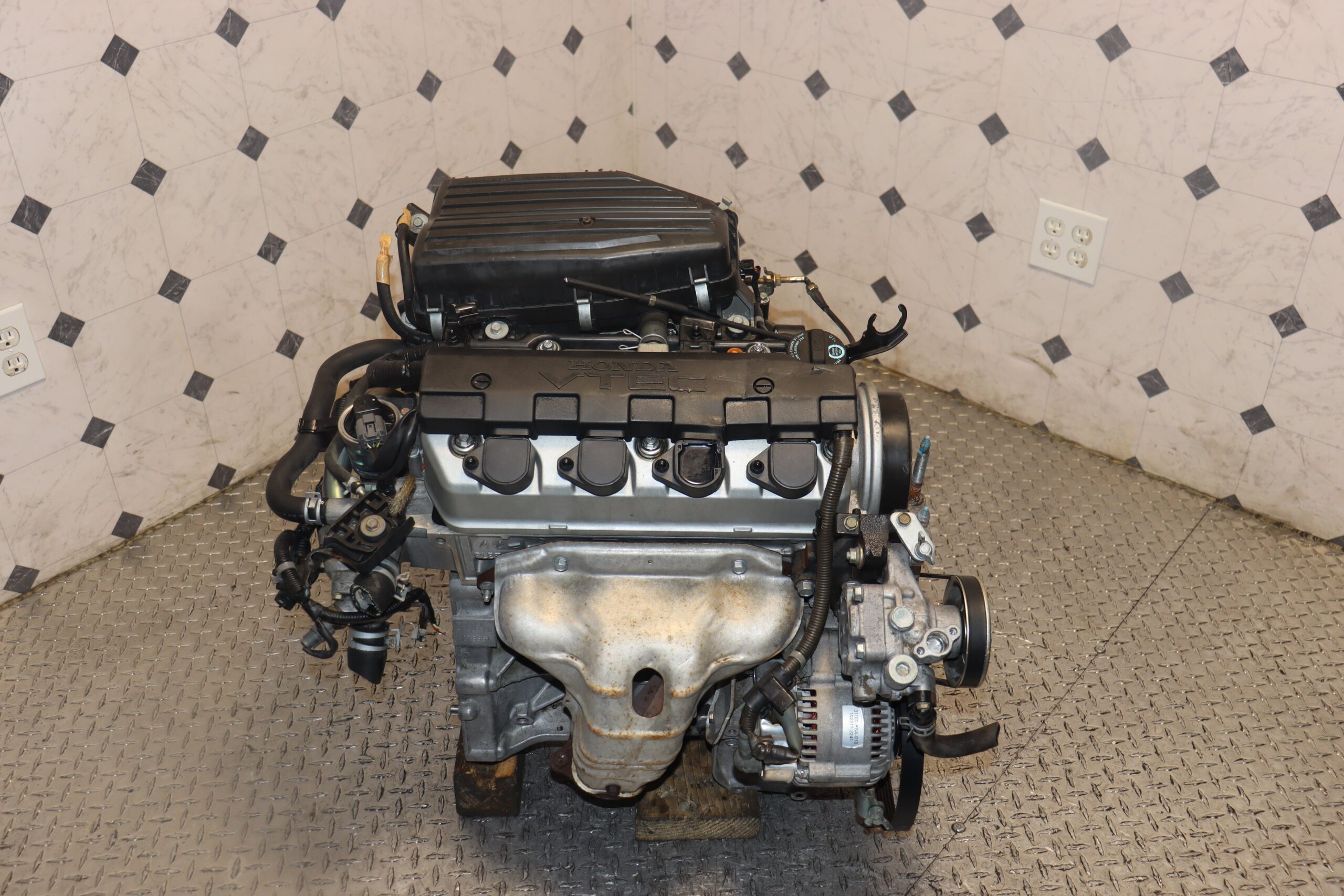

2001–2005 Honda Civic D17A JDM Engine | 1.7L SOHC VTEC Motor





Product Information



2001–2005 Honda Civic D17A JDM Engine | 1.7L SOHC VTEC Motor

Vehicle Specifications



Engine Code: D17A (VTEC)



Displacement: 1.7 Liter (1,668cc)



Configuration: Inline 4-Cylinder



Valvetrain: SOHC 16-Valve VTEC



Timing Drive: Timing Belt Driven (Interference Engine)



Vehicle Fitments



2001–2005 Honda Civic EX (USDM Direct Long Block Replacement for D17A2)

Installation Note: This engine can be swapped into DX/LX (Non-VTEC) models, but requires VTEC wiring and a compatible ECU.



Included Parts



Complete Engine Long Block (Block and VTEC Cylinder Head)



VTEC Solenoid Assembly



Intake Manifold & Throttle Body



Fuel Rails & Fuel Injectors



Coil Packs & Spark Plugs



Alternator, AC Compressor, & Power Steering Pump



Water Pump & All Internal Timing Components



Installation & Notes



USDM Swap: To ensure 100% plug-and-play compatibility with your vehicle’s ECU and emissions, you must transfer all your original USDM accessories to the JDM unit.



Crank Sprocket Warning: JDM D17A engines often feature a different crankshaft timing gear tooth pattern. You must swap your original USDM Crankshaft Sprocket and Camshaft Gear onto the JDM engine to prevent synchronization codes (P0335/P0340) and starting issues.



VTEC Solenoid: If the JDM VTEC solenoid electrical connector does not match your harness, simply swap your original USDM VTEC solenoid onto the JDM head.



Maintenance: We highly recommend a new timing belt kit, water pump, and rear main seal. It is also critical to use a new thermostat and ensure the cooling system is properly bled, as

the D17 series is sensitive to overheating.
